A rang of Indicators and Alarm Units featuring Universal Input, Custom Linearisation,Very high Accuracy, Customized Display Message, Display Color Change, Setpoint Tracking, Communication options, ProgrammableAlarms etc. to suit any process application.
| PID Controllers, Indicators and Alarm Units | |||||
|---|---|---|---|---|---|
| Indictors and Alarm Units | 2100 Series | 3200 Series | 2400 Series | ||

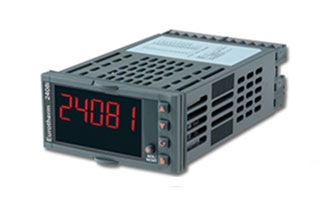

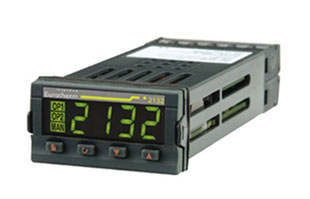

| Features | 2132i | 3216i | 32H8i | 3204i | 2408i |
| Panel size (DIN) | 1/32 | 1/16 | 1/8 | 1/4 | 1/8 |
| IP Rating | IP65 | IP65, NEMA12 | IP65, NEMA12 | IP65, NEMA12 | IP65 |
| Display Type | 1 x 4 dig LED |
4 Digit LCD plus 5 character alphanumeric |
5 Digit LCD plus 9 character alphanumeric |
4 Digit LCD plus 5 character alphanumeric |
Large 5 Digit LED |
| Supply Voltage | 24V dc/ac 85-264V ac | 24V dc/ac 85-264V ac | 24V dc/ac 85-264V ac | 24V dc/ac 85-264V ac | 24V dc/ac 85-264V ac |
| Safety Approvals | None | EN14597/TW, FM | EN14597/TW, FM | EN14597/TW, FM | x |
| Input Type | TC, RTD, mV, mA, Custom |
TC, RTD, mV, mA, Custom |
TC, RTD, mV, mA, Volts, Custom, Strain gauge |
TC, RTD, mV, mA, Custom |
TC, RTD, mV, mA, Volts, Custom |
| User Calibration | 2 point | 5 point | 5 point, Shunt, Load cell, Auto tare |
5 point | 15 point, Shunt, Load cell, Comparison, Auto tare |
| PV Input Selection | x | x | x | x | Hi,Lo, Select, Switchover, Derived |
| No of Alarms | 3 | 4 | 4 | 4 | 8 |
| Alarm Types | Hi, Lo, Dev, Sensor break |
Hi, Lo, Dev, Sensor break, Rate of change |
Hi, Lo, Dev, Sensor break, Rate of change |
Hi, Lo, Dev, Sensor break, Rate of change |
Hi, Lo, Dev, Sensor break, Rate of change, Event |
| No of Relay Outputs | 2 | 3 | 2 | 2 | 7 |
| Digital IP/Logic OP | 1/2 | 2/0 | 2/0 | 2/0 | 2 plus possible further 9/9 |
| Retransmission | x | Non isolated | Isolated | Isolated | Isolated |
| Custom Messages | x | 128 Characters | 128 Characters | 128 Characters | x |
| Slave Comms | x | Modbus RTU | Modbus RTU | Modbus RTU | Modbus RTU, DeviceNet, Profibus DP |
| Melt Pressure | x | x | ✓ | x | ✓ |
| Transmitter PSU | x | x | 10V dc | x | 5/10V dc |
| Transmitter PSU | x | x | 24V dc | 24V dc | 24V dc |
| PC Configuration | List based | Graphical Wiring | Graphical Wiring | Graphical Wiring | List based |
